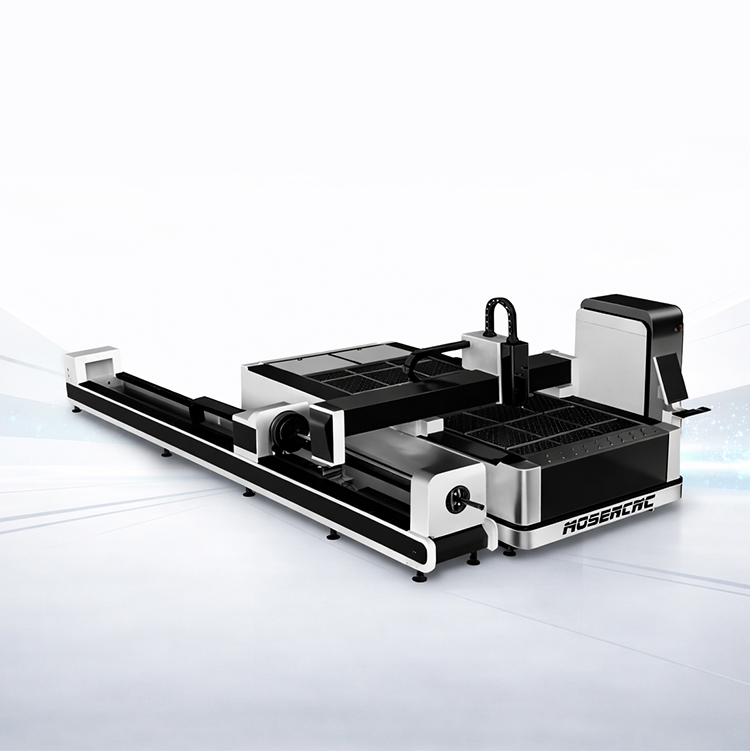

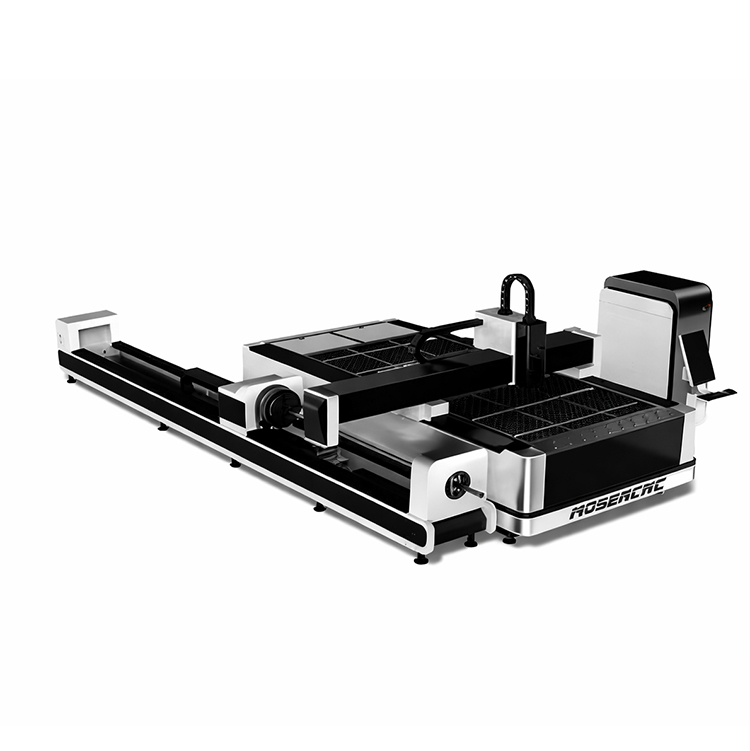

MS-3015FI Fiber Laser Plate-Tube intergrated Cutting Machine
| Technical Parameter | |
| Model | MS-3015 FI |
| Working Area(Customized) | 1500*3000mm |
| Laser Power(Options) | 1500w/2000w/3000w/6000w/12000w |
| Chuck Diameter | 20-410mm |
| Feeding Pipe Length | 3000mm/6000mm |
| Maximum Speed | 60m/min |
| Maximum Accelerate Speed | 1.0G |
| X-axis Travel | 1500mm |
| Y-axis Travel | 3000mm |
| Z-axis Travel | 100mm |
| Position Accuracy | ±0.15/m |
| Reposition Accuracy | ±0.02/m |
| Maximum Chuck Speed | 140r/min |
| Graphic Format Supported | CAD/DXF(etc.) |
