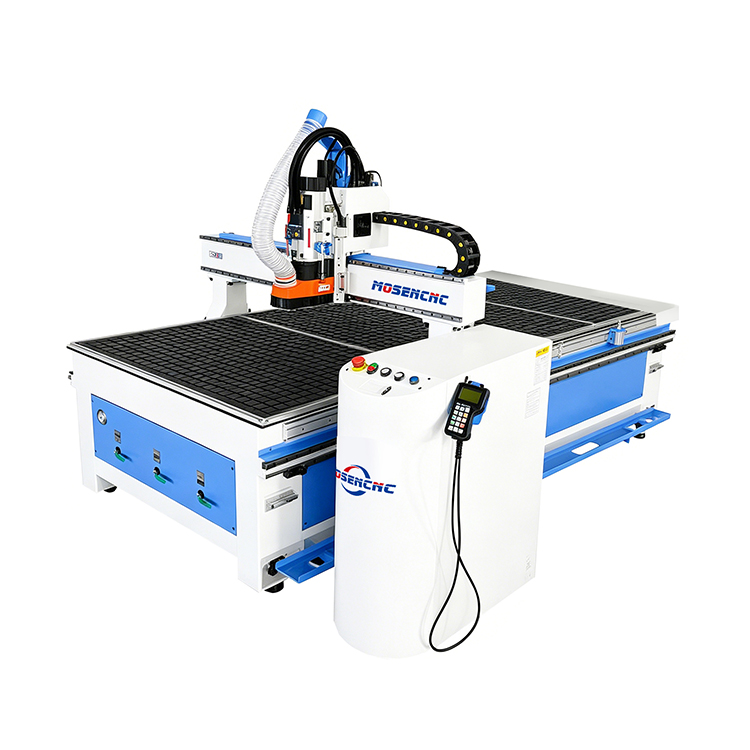

| Model | MS-1325RV |
| Table Type | Vacuum Absorption |
| X,Y,Z Working Area | 1300×2500×200mm |
| Spindle Power | 3.5kw HQD Air-cooling spindle |
| Spindle Speed | 24000RPM |
| Control System | DSP(Optional:Mach 3/NC studio/Weihong) |
| Motors & Drivers | Leadshine stepper motor(Optional: Hybrid servo motor/pure servo motor) |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
| X,Y,Z Rail &Transmission | HIWIN 20mm Guide Rail(Optional:25mm/30mm) |
| Max. Rapid Travel Rate | ≥40000mm/min
|
| Max. Working Speed | ≥20000mm/min |
Commend Code
| G Code |
| Working Voltage | AC380V/220V |
| Frame Structure | Welding Structure |
| Running Environment | Temperature:0℃-45℃ |
Interface
| USB |
| Package Size | 3.2*m2.12m*2.15m |
