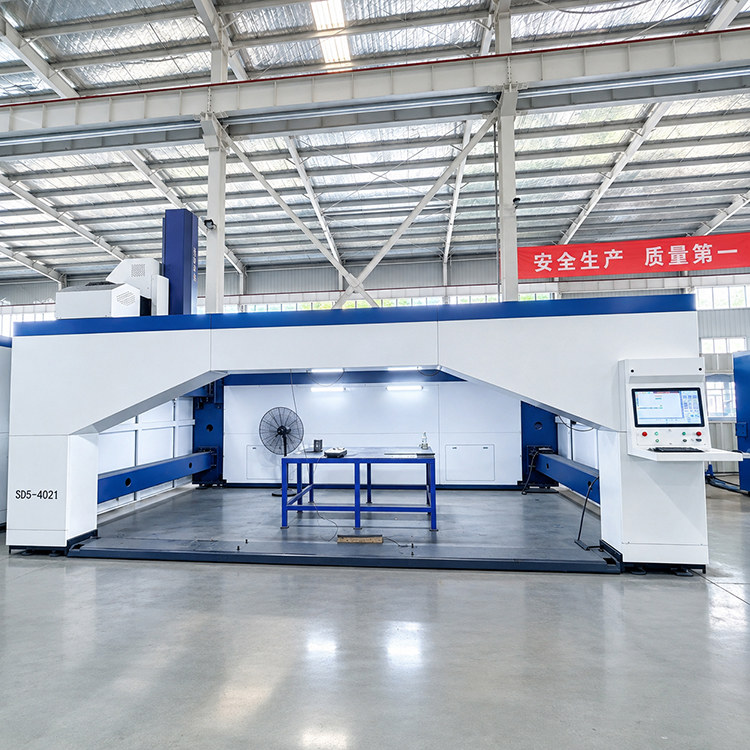

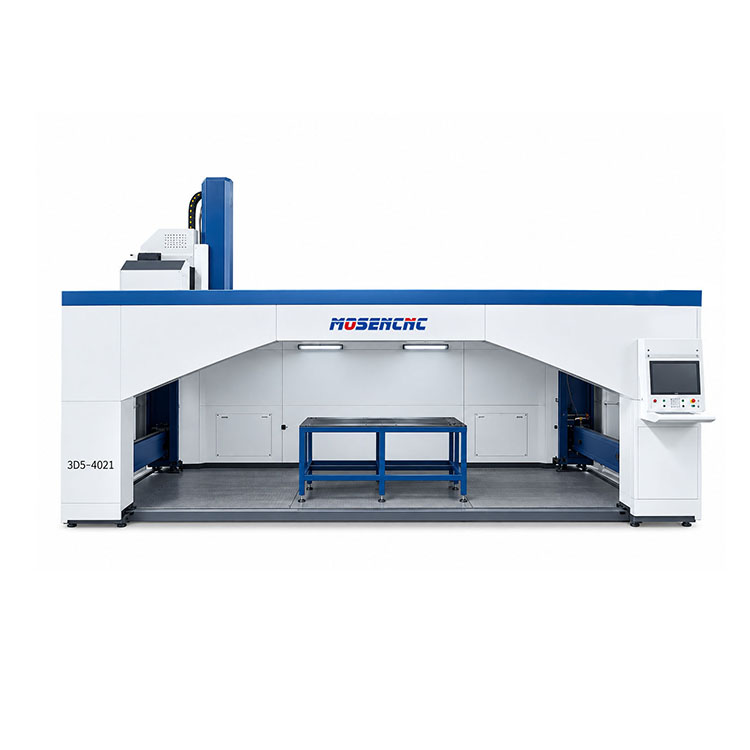

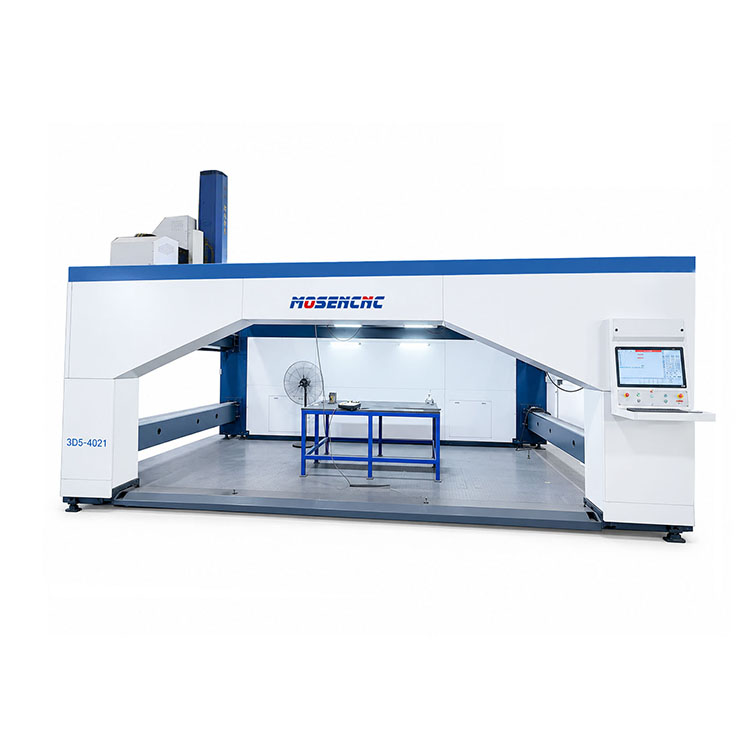

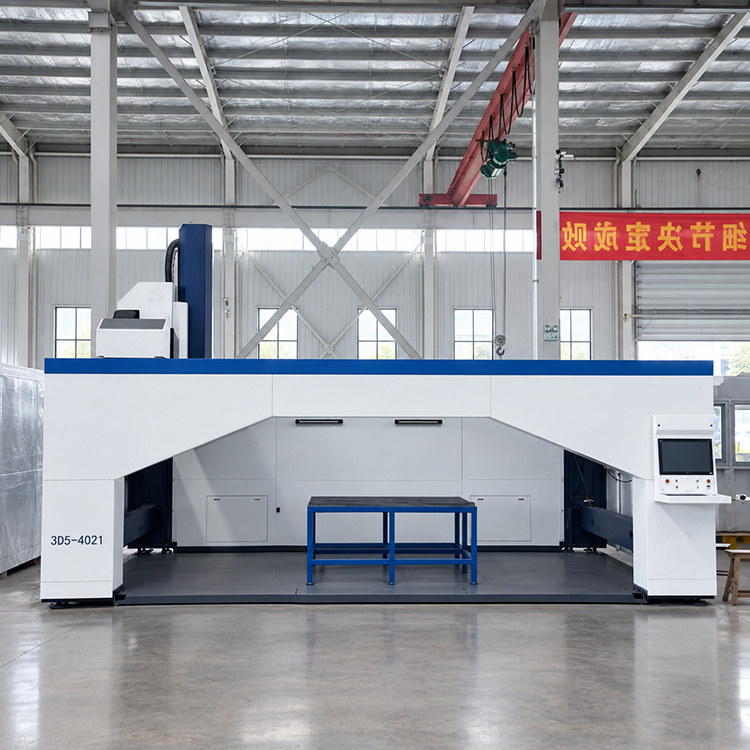

MS-3D5-4021 3D 5 Axis Fiber Laser Cutting Machine
| Model | MS-3D5-4021 |
| Table Type | Vacuum Absorption |
Machine Frame / Bed | Custom-built, Elevated Gantry Type: Welding +Annealing + Machining |
Dimension | 4000*2100*680mm |
| Control System | Inovatrol |
Inovance Servo System | X axis 1.8 kw Y axis 2.9 kw*2 Z axis 1.8 kw A axis 1 kw C axis 2 kw |
Laser Source | Raycus CE 3000w |
Cutting Head | Han's RC304 3D 5-Axis Intelligent Cutting Head 360° Magnetic Anti-Collision + Capacitive Height Tracking + Servo Torque Detection (Compared to other intelligent cutting heads, it features a lower failure |
Reduce | France Motovario |
| Anti-collision mechanism | 360° Magnetic Anti-Collision + Capacitive Height Tracking + Servo Torque Detection |
Rack and Gear | PEK |
Guide Rail | Taiwan HIWIN |
Water Chiller | S&A |
