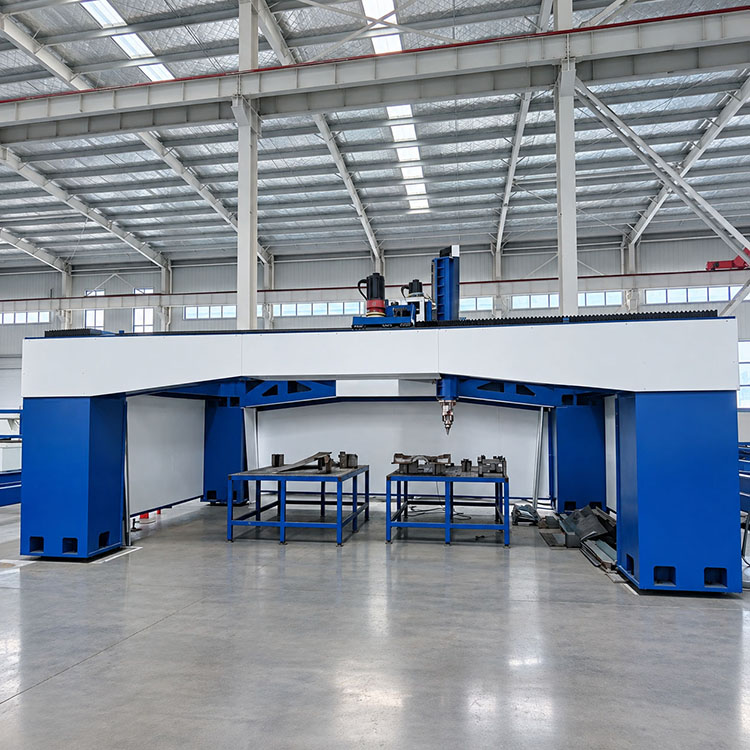

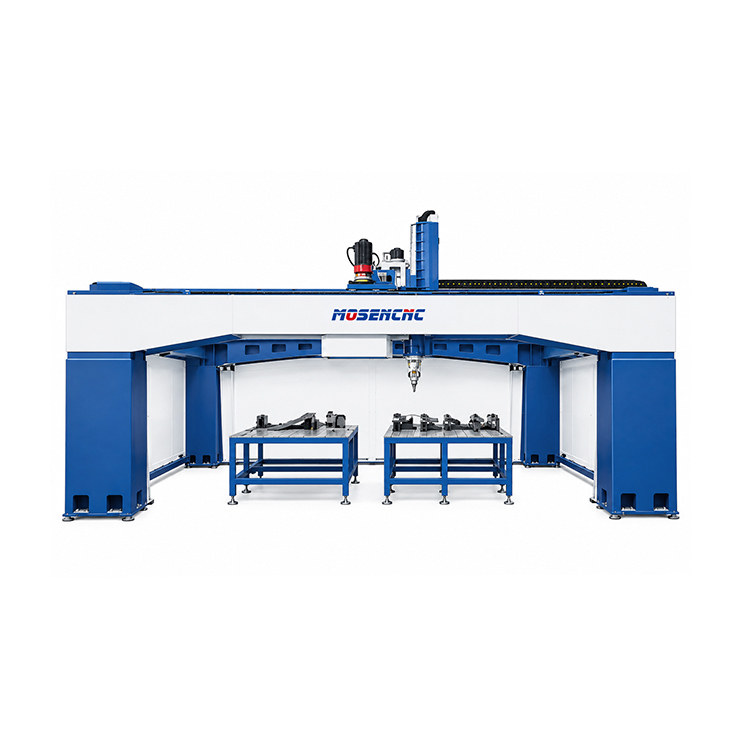

3D 5 Axis Fiber Laser Cutting Machine

Machine Frame / Bed

Custom-built, Elevated Gantry Type:

Welding +Annealing +Machining

Dimension

3000*1500*680mm

Inovatrol

Inovance Servo System

X axis  1.8 kw

Y axis  2.9 kw*2

Z axis  1.8 kw

A axis  1 kw

C axis  2 kw

Laser Source

Raycus CE 3000w

Cutting Head

Han's RC304  3D 5-Axis Intelligent Cutting Head

360° Magnetic Anti-Collision + Capacitive Height

Tracking +Servo Torque Detection

(Compared to other intelligent cutting heads, it features

a lower failure
rate.)

Reduce

France Motovario

360° Magnetic Anti-Collision + Capacitive Height Tracking + Servo Torque Detection

Rack and Gear

PEK

Guide Rail

Taiwan HIWIN

Water Chiller

S&A
